Description

Pneumatic Seals are generally used for applications that include rotary and Reciprocating motions. They are often used in pneumatic cylinders and valves. Pneumatic seals are generally used in low pressure applications.

Pneumatic seals also require minimal lubrication when exposed to air in order to create a tight seal. Pneumatic seals may also be exposed to high operating speeds at which the pressure is not high. Pneumatic seals usually have a pressure rating of 1-150 psi.

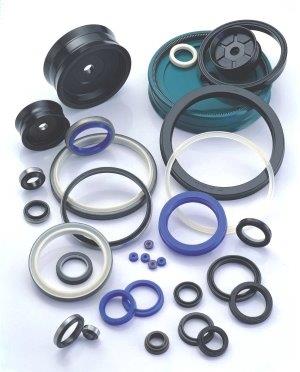

Types of Pneumatic Seals:

PISTON SEALS:

• U-cup piston seals
• Piston cup seals
• TDUO complete pneumatic piston

ROD SEALS:

• U-cup rod seals
• V-pack/ chevron pack
• Combination rod wiper & u-cup seal

WIPER SEALS: (Various Styles & Designs Available)

• Single step wiper
• Double step wiper
• U-cup combination wiper
• Metal case wiper

GUIDE RINGS:

• Various wear strip & wear ring materials available depending on the specific application.
